Macros
#define	CHECK_BTN_S5() !GpioDataRegs.GPADAT.bit.GPIO28

#define	CHECK_BTN_S5() !GpioDataRegs.GPFDAT.bit.GPIOF8

#define	CHECK_BTN_S5() gioGetBit(gioPORTA, 3)

#define	CHECK_BTN_S8() !GpioDataRegs.GPADAT.bit.GPIO29

#define	CHECK_BTN_S8() !GpioDataRegs.GPFDAT.bit.GPIOF9

#define	CHECK_BTN_S8() gioGetBit(gioPORTA, 2)

#define	CHECK_BTN_S6() !GpioDataRegs.GPADAT.bit.GPIO30

#define	CHECK_BTN_S6() !GpioDataRegs.GPFDAT.bit.GPIOF10

#define	CHECK_BTN_S6() gioGetBit(gioPORTA, 4)

#define	CHECK_BTN_S7() 0

#define	CHECK_BTN_S7() !GpioDataRegs.GPFDAT.bit.GPIOF11

#define	CHECK_BTN_S7() gioGetBit(gioPORTA, 0)

Functions
void	DELAY_US (float us)

Detailed Description

Macro Definition Documentation

#define CHECK_BTN_S5 ( ) !GpioDataRegs.GPADAT.bit.GPIO28

This macro returns 1 when button S5 is pressed.

Definition at line 418 of file MLC_drv.h.

#define CHECK_BTN_S5 ( ) !GpioDataRegs.GPFDAT.bit.GPIOF8

This macro returns 1 when button S5 is pressed.

Definition at line 418 of file MLC_drv.h.

#define CHECK_BTN_S5 ( ) gioGetBit(gioPORTA, 3)

This macro returns 1 when button S5 is pressed.

Definition at line 418 of file MLC_drv.h.

#define CHECK_BTN_S6 ( ) !GpioDataRegs.GPADAT.bit.GPIO30

This macro returns 1 when button S6 is pressed.

Definition at line 420 of file MLC_drv.h.

#define CHECK_BTN_S6 ( ) !GpioDataRegs.GPFDAT.bit.GPIOF10

This macro returns 1 when button S6 is pressed.

Definition at line 420 of file MLC_drv.h.

#define CHECK_BTN_S6 ( ) gioGetBit(gioPORTA, 4)

This macro returns 1 when button S6 is pressed.

Definition at line 420 of file MLC_drv.h.

#define CHECK_BTN_S7 ( ) 0

If we want use ext. RAM > 128kB, then it always returns 0.

This macro returns 1 when button S7 is pressed. Collide with ext. RAM > 128kB.

This macro returns 1 when button S7 is pressed.

Definition at line 421 of file MLC_drv.h.

#define CHECK_BTN_S7 ( ) !GpioDataRegs.GPFDAT.bit.GPIOF11

If we want use ext. RAM > 128kB, then it always returns 0.

This macro returns 1 when button S7 is pressed. Collide with ext. RAM > 128kB.

This macro returns 1 when button S7 is pressed.

Definition at line 421 of file MLC_drv.h.

#define CHECK_BTN_S7 ( ) gioGetBit(gioPORTA, 0)

If we want use ext. RAM > 128kB, then it always returns 0.

This macro returns 1 when button S7 is pressed. Collide with ext. RAM > 128kB.

This macro returns 1 when button S7 is pressed.

Definition at line 421 of file MLC_drv.h.

#define CHECK_BTN_S8 ( ) !GpioDataRegs.GPADAT.bit.GPIO29

This macro returns 1 when button S8 is pressed.

Definition at line 419 of file MLC_drv.h.

#define CHECK_BTN_S8 ( ) !GpioDataRegs.GPFDAT.bit.GPIOF9

This macro returns 1 when button S8 is pressed.

Definition at line 419 of file MLC_drv.h.

#define CHECK_BTN_S8 ( ) gioGetBit(gioPORTA, 2)

This macro returns 1 when button S8 is pressed.

Definition at line 419 of file MLC_drv.h.

Function Documentation

void DELAY_US ( float us )

This function provides simple delay up to 330s with us resolution, however it is not much precise if delay < 10us.

Definition at line 225 of file MLC_drv.c.

Referenced by MLC_ADC_reset(), MLC_ADC_setup(), MLC_ADC_start_conv(), MLC_ADC_start_one_conv(), and MLC_DAC_reset().

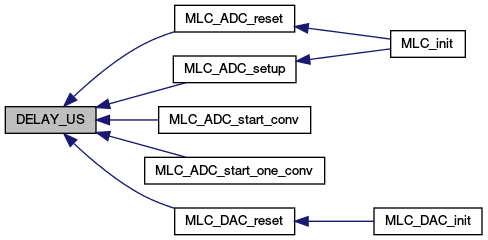

Here is the caller graph for this function:
